Sub-Zero Sealed System & Compressor Repair in Hayward
A Sub-Zero that runs nonstop yet never gets cold usually means the sealed system — compressor, condenser, evaporator, dryer or refrigerant charge. Because this is the most expensive repair tier, we never guess: we read pressures and electrical values to prove the fault before quoting. You get the actual readings, an honest repair-or-replace answer for your Hayward built-in, the $89 service call credited to the repair, and a 365-day labor warranty.
- Pressure & electrical proof
- $89 credited to repair
- 365-day labor warranty
What the sealed system is — and why proof matters here

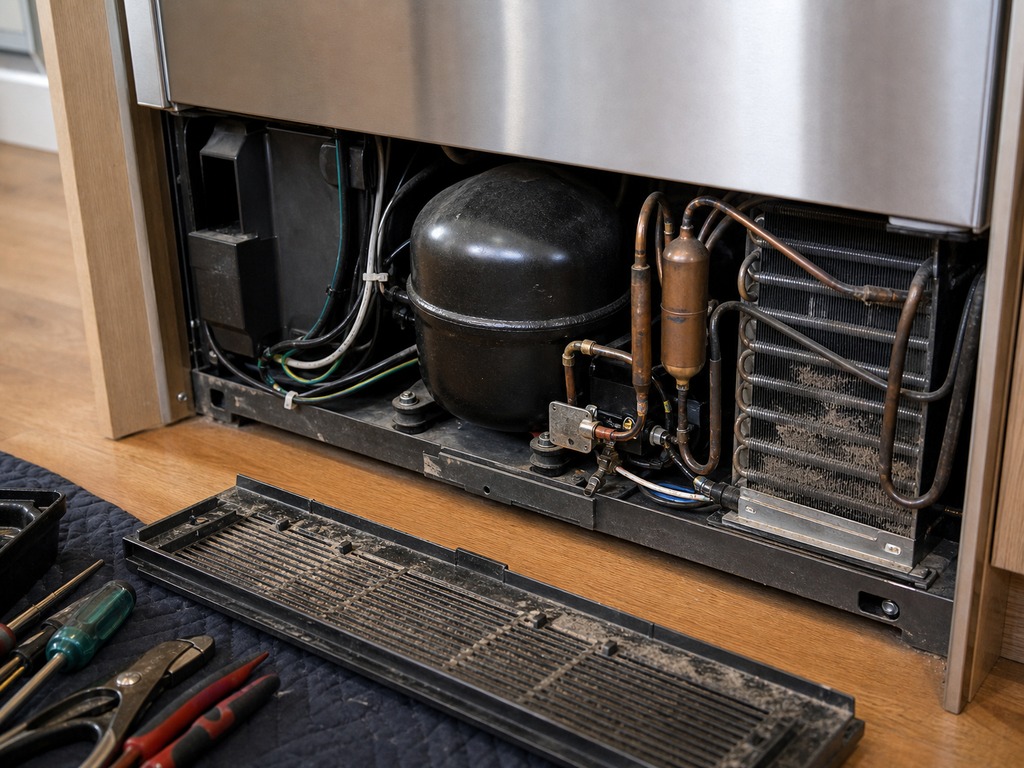

The "sealed system" is the closed refrigeration loop that actually makes a Sub-Zero cold. The compressor pumps refrigerant; the condenser coil (behind the top or bottom grille) sheds heat; the evaporator coil inside absorbs heat from your food; the filter-dryer traps moisture; and the metering device controls the flow. When any one of these fails — a worn compressor, a slow refrigerant leak, a restricted dryer — the unit can run constantly and still drift warm.
Here is the catch: a warm, hard-running built-in looks like a sealed-system failure even when it is really a dirty condenser, a stuck fan, or a frosted evaporator from a defrost fault. Those are far cheaper fixes. At this price tier we refuse to quote on appearance. We open the system to scrutiny with gauges and a meter, capture the numbers, and only then tell you whether you need a sealed-system repair at all. That single habit has saved Hayward homeowners thousands they did not need to spend.
Sealed-system symptom vs. likely cause
How we separate a true sealed-system fault from the cheaper look-alikes on Hayward built-ins.
| What you see | Points toward | How we confirm |
|---|---|---|
| Runs nonstop, both sides slowly warm | Low refrigerant or weak compressor | Suction/discharge pressures + compressor current draw |
| Compressor hums then clicks off (overload) | Seized or shorted compressor windings | Resistance & start-circuit test; ohm the windings |
| Cold for a while, then warms after hours | Slow refrigerant leak or partial restriction | Pressure trend over the cycle; leak-check joints |
| Hissing or gurgling, frost only on part of the coil | Restriction at the dryer or metering device | Temperature split across the coil + pressures |
| Warm but condenser is clean, fans spin | Genuine sealed-system fault, not airflow | Rule out airflow first, then read the system |
| Warm with a dirty grille or stalled fan | NOT sealed system — airflow or defrost | Clean/verify airflow; recheck temps before any sealed work |
The bottom two rows are the most common mix-ups — we eliminate the cheap causes before opening any sealed line.
How we diagnose a Sub-Zero sealed system
This is evidence-first work. Every step produces a reading you can see, so the quote you get is backed by numbers, not a hunch.
- 1 Rule out the cheap causesBefore touching the sealed loop we confirm the condenser is clean, the condenser and evaporator fans run, the doors seal, and the defrost cycle works. A surprising share of "dead compressor" calls end right here for a fraction of the cost.
- 2 Read temperatures and run patternWe log fresh-food and freezer temperatures and watch how the unit cycles. A system that never cycles off, or cools then climbs, tells us where to look next.
- 3 Check the compressor electricallyWe test the windings for resistance, verify the start components and overload, and measure running current. This separates a tired compressor from a control or start-relay problem.

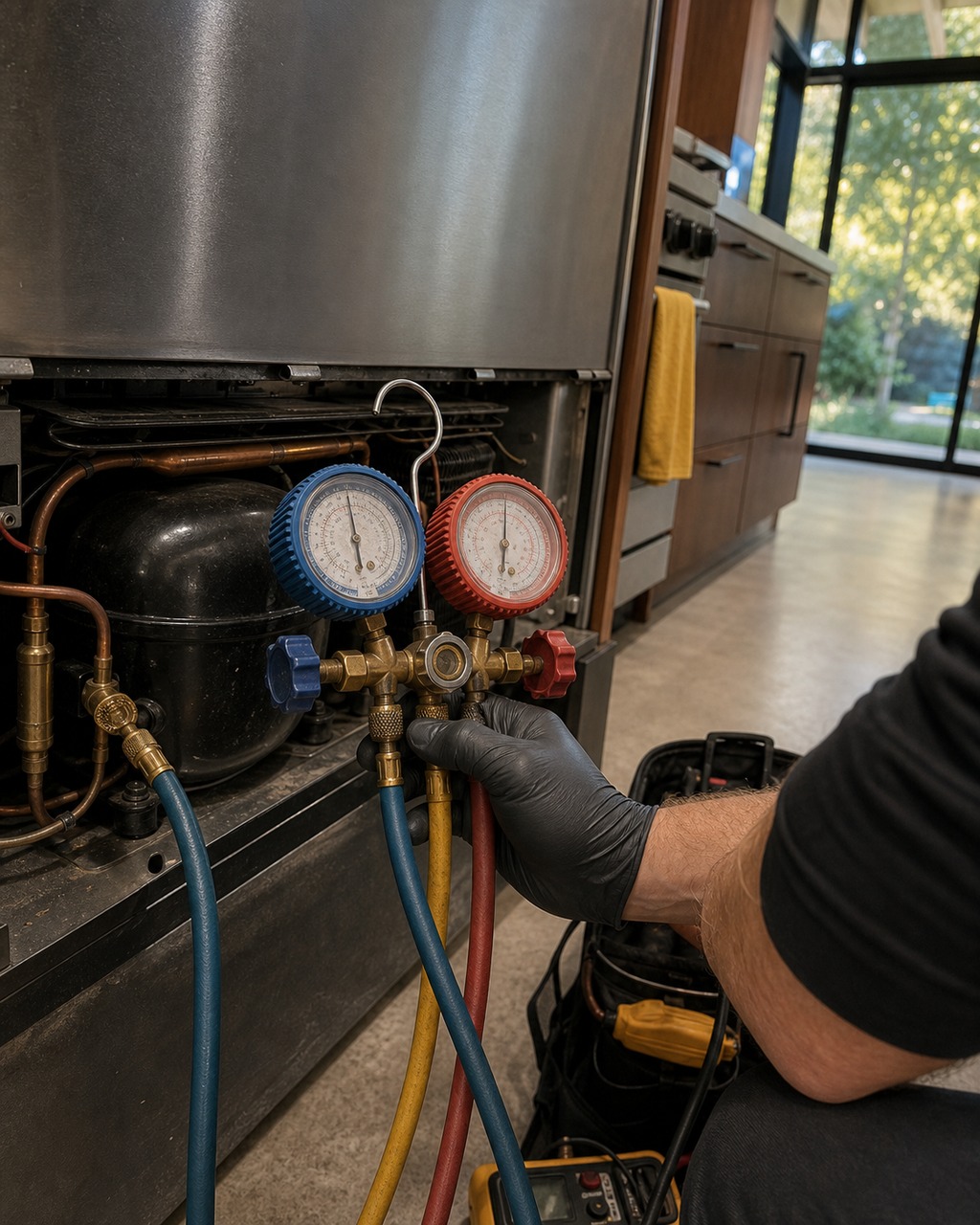

- 4 Connect gauges and read pressuresOn systems with access, we read suction and discharge pressures and compare them against factory-spec values for the model. Low charge, high-side restriction, and a flooded coil each leave a distinct signature.
- 5 Locate any refrigerant leakIf the charge is low we trace the leak — joints, the dryer, and the coils — rather than just topping it off, because an untraced leak comes straight back.
- 6 Lay out the evidence and the decisionYou get the readings and an honest repair-vs-replace recommendation with firm pricing. Call (628) 336-1354 and we will explain exactly what the numbers mean for your unit.
Signs the problem may NOT be the sealed system
If you notice any of these, the fix is often far cheaper — and worth ruling out first.
- One side stays cold: If the freezer is fine but the fresh-food side is warm, airflow or defrost is the usual culprit, not the compressor.
- Grille packed with dust: A condenser choked with lint or pet hair can mimic a failing compressor and clears up with a cleaning.
- A fan that is silent: A stalled condenser or evaporator fan starves the system of airflow and reads warm without any refrigerant fault.
- Heavy frost on the coil: A defrost-circuit failure ices the evaporator and blocks cooling — a sensor or heater job, not a sealed repair.
Repair or replace at this price tier — the honest math
Sealed-system work is the one repair where replacement genuinely deserves a conversation. A Sub-Zero built-in is engineered to be rebuilt, and a sound compressor or evaporator job on an otherwise healthy unit is often a fraction of the $7,000–$12,000+ it costs to buy and install a new column or built-in. That math usually favors the repair.
But not always. On a much older unit with a failing compressor and a tired control system, or where access and parts push the job toward the top of the range, replacement can be the smarter spend. We do not earn anything by talking you into the biggest invoice — we show you the readings, the realistic life left in the unit, and let the numbers decide. Several Hayward Hills and San Lorenzo customers have repaired 12- to 15-year-old built-ins on our recommendation and are still running them years later.
Sealed-system & compressor repair cost in Hayward
Planning ranges for the sealed-system tier. The $89 service call covers the full pressure-and-electrical diagnosis and is credited to the repair you approve.
| Service in Hayward | Draft range | Time | Notes |
|---|---|---|---|
| Diagnostic / service call | $89 | 60–120 min | Full pressure & electrical workup — credited to the repair |
| Refrigerant leak repair & recharge | $1,400–$2,400 | 3–5 h + parts | Locate leak, repair joint/dryer, evacuate & recharge |
| Filter-dryer / restriction repair | $1,400–$2,200 | 3–5 h | Clear restriction, replace dryer, recharge to spec |
| Compressor replacement | $1,900–$3,500 | 4–6 h + parts | Genuine OEM compressor; evacuate & recharge |
| Full sealed-system rebuild | $2,400–$3,500 | 5–7 h + parts | Compressor, dryer & charge; quoted after evidence |
Draft ranges for planning. Final quote depends on the model, the specific fault, parts and access — always given after the readings, never before.
Hayward sealed-system & compressor repairs
This was the expensive kind of problem — sealed system. Instead of pushing the biggest job, the tech showed me the pressure and electrical readings and laid out repair against replacement honestly for a 14-year-old unit. We repaired, it’s been solid, and the labor is warrantied for a year.
GE Monogram built-in wasn’t holding temp. They proved out the sealed system with gauges before recommending anything, then fixed it for far less than the replacement quote I’d gotten elsewhere. Labor warrantied a full year. Even though I’m in San Lorenzo they came right out.
They understood I didn’t want to throw money at an old unit. Diagnosed clearly, gave me a repair-or-replace recommendation in plain English, and the repair has held up great. Genuine parts, a year of labor warranty, and the $89 credited to the job.
Frequently asked questions
How do you know it is really the sealed system and not something cheaper?
We prove it. Before opening any refrigerant line we rule out a dirty condenser, stalled fans, bad seals and defrost faults. Then we measure compressor resistance and running current and read suction and discharge pressures against factory-spec values. A weak compressor, low charge and a restriction each leave a distinct signature. You see the readings before any sealed-system quote — never a guess.
How much does a Sub-Zero compressor or sealed-system repair cost in Hayward?
Sealed-system work typically runs $1,400 to $3,500 depending on the fault. A leak repair and recharge sits at the lower end; a full compressor replacement with evacuation and recharge is higher. The $89 service call covers the complete pressure-and-electrical diagnosis and is credited to whatever repair you approve, so the workup is not an extra cost.
Can you just add refrigerant to my Sub-Zero?
A sealed system is closed, so it only loses refrigerant when there is a leak. Simply topping it off without finding the leak gets you a few cold days and then the same warm unit. We trace the leak to its source — a joint, the dryer or a coil — repair it, evacuate the system, and recharge to factory spec so the fix lasts rather than recurs.
Is it worth repairing the sealed system on an older Sub-Zero?
Often yes. Built-ins are designed to be rebuilt, and a sound sealed-system repair is usually far less than the $7,000–$12,000+ of replacing a built-in or column. We weigh it honestly, though: on a very old unit with a failing compressor and tired controls, replacement can win. We show you the readings and the realistic life left so the decision is based on real numbers.
My Sub-Zero runs constantly but never gets cold — is the compressor dead?
Maybe, but not necessarily. Constant running with poor cooling can be a weak compressor or low charge, yet it just as often turns out to be a clogged condenser, a stalled fan, or a frosted evaporator — all much cheaper. We test the compressor electrically and read system pressures to tell the difference before recommending the expensive repair.
Do you use genuine Sub-Zero compressors and parts?
Yes. Sealed-system repairs are done with factory-certified, genuine OEM Sub-Zero parts and follow manufacturer-recommended procedures, including proper evacuation and recharge to factory-spec values. That keeps the rebuilt system durable and protects the value of the built-in. As with every repair, the labor is backed by our 365-day warranty.
Do you handle sealed-system work outside Hayward?
Yes. Alongside Hayward neighborhoods like Hayward Hills, Fairway Park, Mt Eden, Cherryland and Southgate, we cover Castro Valley, San Leandro, San Lorenzo, Union City and Fremont. Sealed-system jobs on built-ins are routine for us across the East Bay. Call (628) 336-1354 or book online and we will schedule the diagnostic visit.
